MODEL |
DVR-B7041SD |
| VIDEO FORMAT |
NTSC |
PAL |
| OPERATING SYSTEM |
EMBEDDED RTOS |

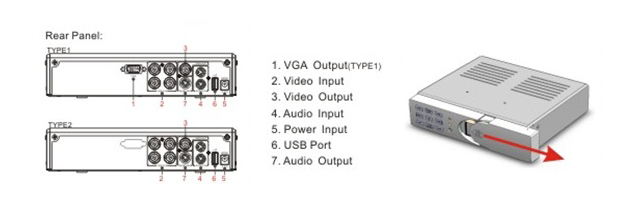

| VGA OUT |
D-SUB 15P VGA |
| VIDEO INPUT |
BNC x 4 |
| VIDEO OUTPUT |
BNC x 1 |
| AUDIO INPUT |
RCA x 2 |
| AUDIO OUTPUT |
RCA x 1 |
| OSD INTERFACE |
GUI INTERFACE, MULTI-LANGUAGE |
| DISPLAY FRAME |
120 FPS (4x30FPS) |
100 FPS (4x25FPS) |
| RECORDING FRAME |
60 FPS |
50FPS |
| VIDEO OPERATION |
DUPLEX (RECORDING / PLAYBACK) |
| RESOLUTION |
DISPLAY |
640 x 448 |
640 x 544 |
| RECORDING |
640 x 224 |
640 x 272 |
| VIDEO COMPRESSION |
MODIFIED MJPEG (NOMAL,HIGH,HIGHEST) |
| HDD |
SATA HDD x 1 |
| BACKUP DEVICE |
USB |
| SEARCHING |
MODE |
TIME / DATE , EVENT LIST |
| FULL SCREEN |
YES |
XGA OUTPUT RESOLUTION
(TYPE1) |
640 x 480 / 800 x 600 / 1024 x 768 /
1280 x 1024 / 1440 x 900 |
| MOTION DETECT |
YES |
| LOSS DETECT |
YES |
| AUTO SWITCHING |
YES |
| BUZZER OUTPUT |
YES |
| BRIGHTNESS ADJUSTABLE |
YES |
| CONTRAST ADJUSTABLE |
YES |
| WATCH DOG |
POWER RECOVER AUTO RESTORE RECORD MOD |
| POWER SUPPLY |
DC 12V / 3A (AC100V~240V 50/60HZ) |
| DIMENSION |
224mm(W) x 204mm(D) x 50mm(H) |
| WEIGHT |
850g (WITHOUT HDD) |
DVR-B7041SD
SPECIFICATIONS
