H.264 Algorithm Compression |
|
16chs split video & automatic sequent video display
|
|
Powerful and Various Record Mode
|
|
Motion Detection and Support long time recording
|
|
Mouse or a few buttons using Easy & Simple control
|
|
No need any professional knowledge on DVR use |
|
Reliable Stand Alone DVR system
|
|
Excellent System Quick Start whenever Power On |
|
Automatic and Complete System recovery within 10 seconds whenever Re-Power On after black out |
|
PTZ control from remote PC
|
|
Support TCP/IP and Remote Control on all DVR features
|
|
Easy Network Configuration from Dynamic Ip to Dynamic ip |
|
|
|
|
|
|
 SPECIFICATIONS
Camera SIGNAL |
TV Standard |
NTSC |
PAL |
| VIDEO FEATURES |
Live (Real time display) |
480 FPS
|
400 FPS
|
Zoom |
2 times digital |
Sequence |
Full display, 4 split display with 4 pages, 9 split display with 2
|
Format |
1 screen, Quad pages split, 9 split, 16 split
|
Video enhance |
Brightness, Contrast control for each Camera |
VGA out control |
Brightness, Contrast, saturation
|
| AUDIO FEATURES |
G.723 |
16ch Input / 1ch Output
|
Speaker Output Volume Control
|
16 steps |
Audio Input Volume Control
|
16 steps |
| RECORDING |
Frame rate
|
480 FPS |
400 FPS |
Resolution |
Each camera set in D1, HD1, CIF 704x480,704x240,352x240 (NTSC) / 704x576, 704x288, 352x288 (PAL)
|
Codec |
H.264 |
TYPE |
Timer, Motion, Alarm, Manual individually set
|
Pre, Post record |
1~30 sec |
Media |
4 HDD(Auto over write) |
| SEARCH |
Time, Thumbnail, Panorama, Smart, Event log List, Quick Search
|
Fast x128 , Slow, Forward, Reverse, Image by image
|
| BACKUP |
DVD r/w, CD r/w, HDD, Stick mamory, Network |
Each Camera, ALL Camera, Time range
|
USER
INTERFACE |
GUI |
RGB 24bit full color
|
Operating interface |
Mouse, Keypad, IR remote controller, Network
|
Jog shuttle |
Jog shuttle in front panel
|
| Language |
Multi language |
English, Chinese, Taiwanese, Portuguese, Spanish, Japanese, Russian, German, Finish, Korean
|
| NETWORK |
Ethernet 10/100M Auto |
TCP/IP, DHCP, DDNS, MNS server
|
SMTP Server
|
Alarm, Motion, Record ON/OFF, Replay, HDD Fail, Video loss, Power Loss...etc |
| PC Program |
Remote Viewer |
Simualtely same with local DVR
|
CMS |
Same time 32 site connect and control, 640 site grouping
|
PC Player |
DVD, CD, external HDD, USB memory, pc HDD
(Replay, AVI convert, Copy, Print)
|
| Communication |
2way Audio communication |
PC to DVR
|
| USB |
USB 2.0 |
USB ODD, USB HDD, USB Memory
|
| SERIAL |
RS232 / RS422 / RS485 |
8 camera Pan/Tilt, Remote control
|
| ALARM |
Inputs |
8 Inputs |
Outputs |
4 Relay Output(3A max) |
latch up |
1 ~ 10 sec |
| HDD |
S-ATA |
4 HDD
|
| POWER |
Input Voltage |
AC 110VA/ 220VA(Selectable) 50~60Hz
|
Power consumption |
Approx. 80W |
| CONNECTORS |
Camera Inputs
|
16 BNC |
Camera Outputs |
16 BNC(Looping)
|
Audio Inputs |
16 RCA |
Audio Output |
1 RCA(Rear Panel), 1RCA(Front Panel)
|
Composit monitor Outputs (Monitor, VCR)
|
2 BNC, 1RCA(Front Panel)
|
VGA monitor Output |
15pin HDSUB |
Alarm In/Out
|
In terminal block
|
RS485
|
In terminal block
|
Ethernet |
RJ45 |
USB |
4 USB ports (2 rear panel, 2 front panel)
|
| MECHANICAL |
Dimension(m/m) |
430(W)x375(D)x90(H)
|
Weight |
Approx. 10 Kg |
| ENVIRONMENT |
Operating Temperature |
0 ~ 60 degC |
Humidity |
10 ~ 90% |

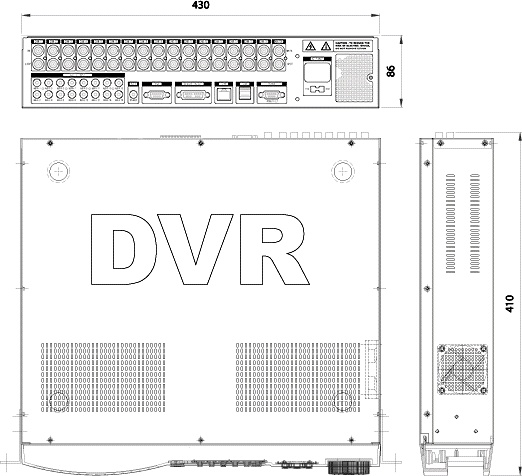

DIMENSION
|
|
|
|
|
DVR-S516GT
