HOME > PRODUCT > CAMERA > INFFRARED CAMERA
SM-CHW48HK
24-hour operational camera with perfect picture perfomance
410K pixel SONY 1 / 3 Super HAD CCD
IR camera built-in 48 IR LED for 20~40M range in darkview
Unique looks for outdoor / indoor application
Packing camera, lens, braket as a set
Auto White Balance
6mm lens mounting board

 SPECIFICATIONS

MODEL
 SM-CHW48HK
IMAGE SENSOR DEVICE SONY 1 / 3 Super HAD CCD
EFFECTIVE PICTURE ELEMENTS 410K Pixel
SCANNING STANDARD 2:1 INTERLACE
SYNCHRONIZING SYSTEM INTERNAL
HORIZONTAL RESOLUTION MORE THAN 480 TV LINE
GAMMA CORRECTION 0.45
MINIMUM ILLUMINATION IR ON : 0LUX
WHITE BALANCE AUTO (2500˚K~9600˚K)
OPERATING TEMPERATURE -10℃~50℃
POWER REQUIREMENT DC12V
POWER CONSUMPTION(TOTAL) 500mA
LENS STANDARD 6.0mm/F2.0
PROJECTING RANGE OF DISTANCE FOR IR LED LIGHTER 48 IR LED ABOUT 35~40M
DIEMENSIONS 95(L) x 75(W) x 80(H)mm
WEIGHT 610g

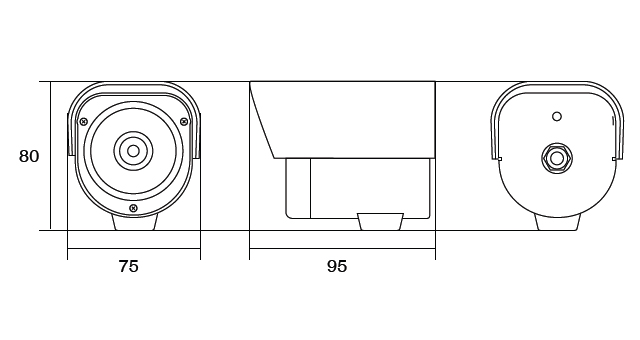

 DIMENSIONS
