SM-HYB24
Intelligent camera supported motion and PIR detection system with white light and IR LED
Unlike other general IR cameras which can only present B/W image at night, exclusively design as a motion detection system to activate the white light LED within 3M~7M camera lens range distance in color image, in the other hand when IR is ON, shows  B/W image only
Hybrid LED has White light and IR light which use dual light package technology
Motion detection 3M ambits, PIR detection 7M ambits. Detection Mode Selective
Power saving control, also it can be an auxiliary lighting and warning purpose
Installation Field: Basement / Underground parking / Factory / Lane / Passage / Courtyard / Enclosure

 SPECIFICATIONS

MODEL
 SM-HYB24
SIGNAL SYSTEM NTSC PAL
IMAGE SENSOR DEVICE 1/3" INTERLINE TRANSFER
EFFECTIVE PICTURE ELEMENTS 537(H) x 505(V) 537(H) x 597(V)
SCANNING STANDARD 2:1 INTERLACE
SYNCHRONIZING SYSTEM INTERNAL
HORIZONTAL RESOLUTION MORE THAN 420 TV LINE
ELCTRONIC SHUTTERCONTROL AUTO SHUTTER 1/60~1/100000 AUTO SHUTTER 1/50~1/100000
GAMMA CORRECTION 0.45
MINIMUM ILLUMINATION 0.05 lux color / F1.8
VIDEO OUTPUT LEVEL 1Vp-p/75 ohms , composite
VIDEO S/N RATION 48db (ACG OFF)
WHITE BALANCE AUTO (2500˚K~9600˚K)
BACKLIGHT COMPENSATION YES
STORAGE TEMPERATURE -12 to 70℃ (-4 to 158℉)
OPERATING TEMPERATURE -10 to 50℃ (14 to 122℉)
POWER REQUIREMENT DC12V + 10%
POWER CONSUMPTION(TOTAL) White LED: 2.88W (Max) / IR LED : 2W(Max)
LENS STANDARD Board Lens 6mm / F1.8
PROJECTING RANGE OF DISTANCE FOR IR LED LIGHTER 35( 36pcs IR LED / 36, purchase White)
DIEMENSIONS 76(W) x180(H) x 191(D)mm
WEIGHT 720g

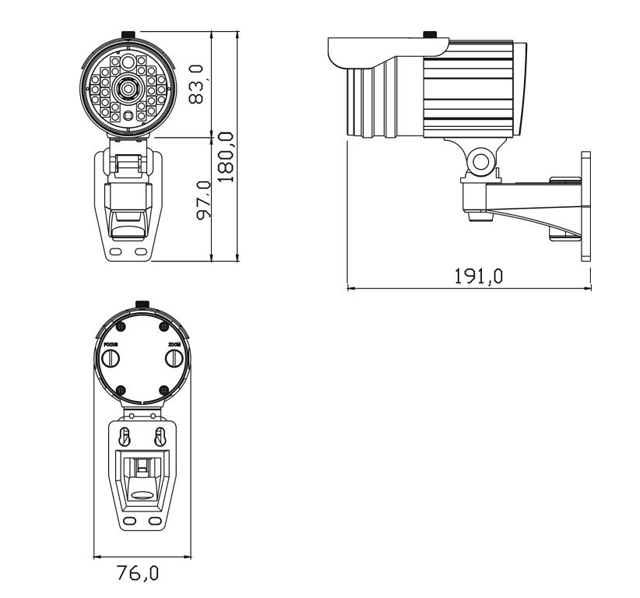

 DIMENSIONS
