YV2.8 X 2.8LA-SA2

	Unparalleled brightness at the maximum aperture of F0.95,optimizing the performance at low lighting intensity
	WIDE 2.8mm, achieving the horizontal field angle of 99 degrees (when used on 1/3 cameras)
	Compact and light weight design, best suited for the use with dome cameras
	high accuracy aspheric lens adopted, achieving the high quality image.
	Built-in ND filter of T360, supporting high sensitivity cameras

SPECIFICATIONS

MODEL			YV2.8 X 2.8LA-SA2
FOCAL LENGTH (mm)			2.8 ~ 8 (2.8x)
IRIS RANGE			F0.9 ~ T360 (EQUIVALENT TO F360)
OPERATION		ZOOM	MANUAL
		FOCUS	MANUAL
		IRIS	AUTO (DC TYPE) (*1)
ANGLE OF VIEW (H x V)	1 / 3 "	WIDE	99˚ 52' x 73˚ 17'
		TELE	35˚ 14' x 26˚ 24'
	1 / 4 "	WIDE	73˚ 17' x 54˚ 19'
		TELE	26˚ 24' x 19˚ 47'
FOCUSING RANGE (FROM FRONT OF THE LENS) (m)			∞ ~ 0.3
OBJECT DIMENSIONS AT M.O.D (H x V) (mm)	1 / 3 "	WIDE	736 x 459
		TELE	196 x 145
	1 / 4 "	WIDE	459 x 317
		TELE	145 x 108
BACK FOCAL DISTANCE (IN AIR) (mm)			7.51
EXIT PUPIL POSITION (FROM IMAGE PLANE) (mm)			91
FILTER THREAD (mm)			-
MOUNT			CS
MASS (g)			45
COIL RESISTANCE			DRIVE COIL 190Ω DAMPING COIL 500Ω
CURRENT CONSUMPTION			23mA (MAX) at DC 4V
REMARKS			· WITH METAL MOUNT (*1) WHEN POWER IS TURNED OFF,IRIS WILL AUTOMATICALLY CLOSE. YV2.8 x 2.8LA-SA2L : LONG CABLE TYPE (230mm)

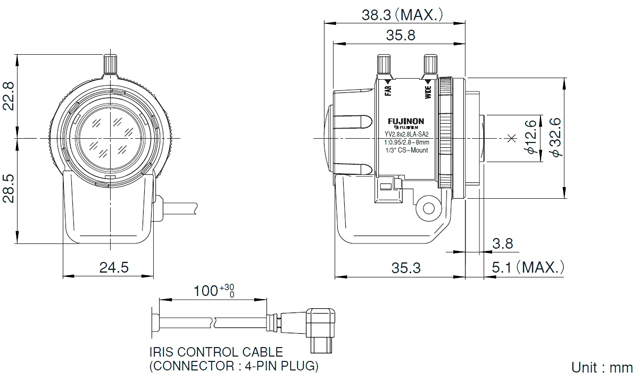

DIMENSIONS
