1/3" Sony Super HAD CCD |
|
High Resolution of 520 TVline |
|
Fixed Iris Board, Pinhole, Vari-Focal Lens, C/CS Mount |
|
Min. illmination of 1.0 Lux/F2.0 |
|
3x Digital Zoom |
|
RS-485 Remote Setup control |
|
Automatic Gain control |
|
Compact Size of : 38mm(W) x 38mm(H) |
|
Options : 1/3" Sony Exview CCD, Remote Controller(1M/35M Cable) |
|
|
|
|
|
|
 SPECIFICATIONS
Model Name |
T-PI-3008CA |
| Image Device |
1/3" SONY Super HAD CCD |
| Scanning System |
2:1 Interlace |
| Scanning Frequency |
NTSC : 15.734 KHz(H), 59.94 Hz(V) |
| PAL : 15.625 KHz(H), 50 Hz(V) |
| H. Resolution |
520 TVL |
| Total Pixels |
NTSC : 811(H) x 508(V) / PAL : 795(H) x 596(V) |
| Effective Pixels |
NTSC : 768(H) x 494(V) / PAL : 752(H) x 582(V) |
| S/N Ratio |
More than 50dB (AGC Off) |
| Min. Illumination |
1.0 Lux / F 2.0 |
| Sync. System |
Internal |
| Gamma |
γ = 0.45 |
| Video Output |
1.0 Vp-p Composite (75Ω) |
| Lens |
Fixed Board Lens / Pinhole Lens / Vari-Focal Lens |
| Digital Zoom Ratio |
3X |
| Electronic Shutter |
NTSC : 1/60 ~ 1/100,000 sec / PAL : 1/50 ~ 1/100,000 sec |
| Day & Night |
Digital Day & Night |
| Protocol |
Pelco-D |
| External Control |
A/D Key, RS-485 Controller |
| Operating Temperature |
14˚F ~ 122˚F (-10˚C ~ +50˚C) |
| Storage Temperature |
-4˚F ~ 140˚F (-20˚C ~ +60˚C) |
| Humidity |
Less than 80% |
| Power Comsumption |
DC12V (±10%), Max. 180mA |
| Dimensions (mm) |
38.5 (W) X 38.5 (H) X 30(D) |
| Weight |
Approx. 131g |

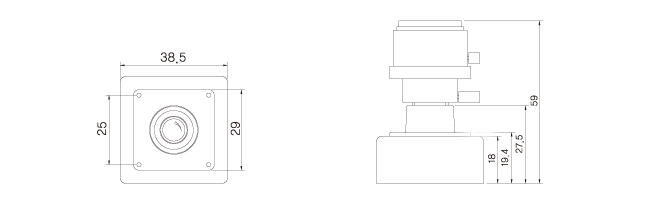

DIMENSION
|
|
|
|
|
T-PI-3008CA-3
