HOME > PRODUCT > CAMERA > ONE CABLE

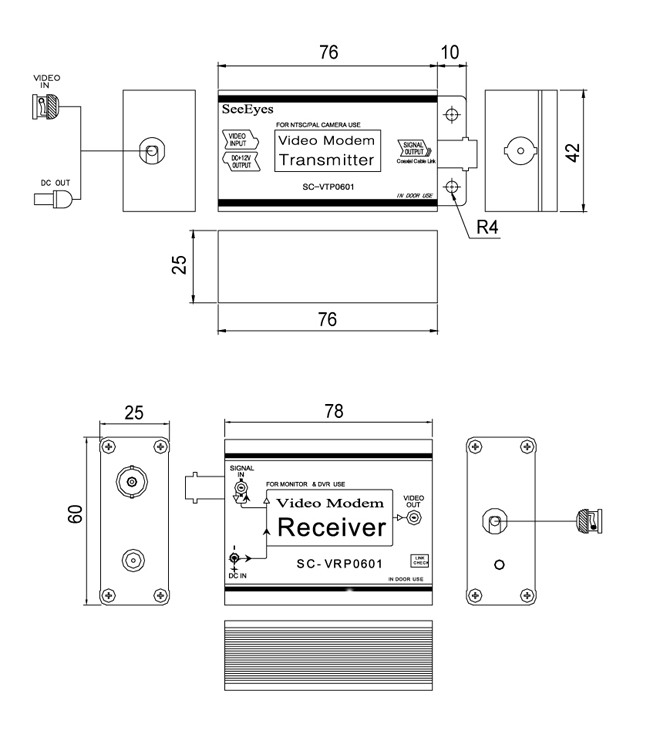

"Video & Power" transmission over 1 coaxial cable Long distance transmission up to Max. 1Km (with RG-6) Maintain high quality video & excellent interference immunity No need of power wiring & saving infrastructure cost Auto distance control for video signal Installation improvement (cost saving 25~30%) Easy if installation with BNC harness Auto diagnosis for cable status and safe power supply Surge protection function  SPECIFICATIONS MODEL WVM-1T06 VIDEO OUT CVBS 1.0Vp-p , 75Ω Term. POWER IN FOR CAMERA / DC12V , 500mA BANDWIDTH 8MHz MAX. DISTANCE 1Km WITH STANDARD RG6 CABLE CONNECT PORT IN / OUT : DC-F & BNC-M HARNESS (25cm) RF OUT : BNC-F TEMPERATURE / HUMIDITY -10℃ ~ +50℃ / 0 ~ 80% CASE BODY / WEIGHT ALUMINUM / 100g DIMENSION 75(W) x 42(H) x 25(D) mm MODEL WVM-1R06 VIDEO OUT CVBS 1.0Vp-p , 75Ω Term. POWER IN AC/DC ADAPTOR +48V 1.0A BANDWIDTH 8MHz TRANSMISSION DISTANCE AUTO ADJUSTMENT STATUS LED (RED COLOR LED) ON : WORKING FLICKERING : CHECK CONNECT PORT VIDEO OUT : BNC-M HARNESS RF In : BNC-F TEMPERATURE / HUMIDITY -10℃ ~ +50℃ / 0 ~ 80% CASE BODY / WEIGHT ALUMINUM / 130g DIMENSION 75(W) x 60(H) x 25(D) mm ADAPTOR ELECTRIC DC +48V / 1.0A DIMENSION 116(W) x 49.5(H) x 31(D) mm  DIMENSION
