WVM-4C06
"Video & Power" transmission over 1 coaxial cable
Long distance transmission up to Max. 1Km (with RG6)
Maintain high quality video & excellent interference immunity
No need of power wiring & saving infrastructure cost
Auto distance control for video signal
Installation improvement (cost saving 25~30%)
Easy if installation with BNC harness
Auto diagnosis for cable status and safe power supply
1U type / 1/2U type
Surge protection

 SPECIFICATIONS

MODEL
WVM-4T06
VIDEO OUT CVBS 1.0Vp-p , 75Ω Term.
POWER IN FOR CAMERA / DC12V, 500mA
BANDWIDTH 8MHz
MAX. DISTANCE 1Km WITH STANDARD RG6 CABLE
CONNECT PORT IN / OUT : DC-F & BNC-M HARNESS
POWER OUT : DC-F , RF OUT : BNC-F
TEMPERATURE / HUMIDITY -10℃ ~ +50℃ / 0 ~ 80%
CASE BODY / WEIGHT ALUMINUM / 100g
DIMENSION 76(W) x 42(H) x 25(D) mm

MODEL
WVM-4R06
VIDEO OUT CVBS 1.0Vp-p , 75Ω Term.
POWER IN AC 100~240V, 5/60Hz |DC +48V 1.0A (H TYPE)
BANDWIDTH 8MHz
MAX. DISTANCE AUTO
STATUS LED 2 COLOR (GREEN : NORMAL, RED : LINK ERROR)
CONNECT PORT VIDEO OUT : BNC-M HARNESS (60Cm)
RF In : BNC-F
TEMPERATURE / HUMIDITY -10℃ ~ +50℃ / 0 ~ 80%
CASE BODY / WEIGHT 1U SIZE : STEEL / 3.5Kg
DIMENSION 1U SIZE : 430(W) x 44(H) x 350(D) mm

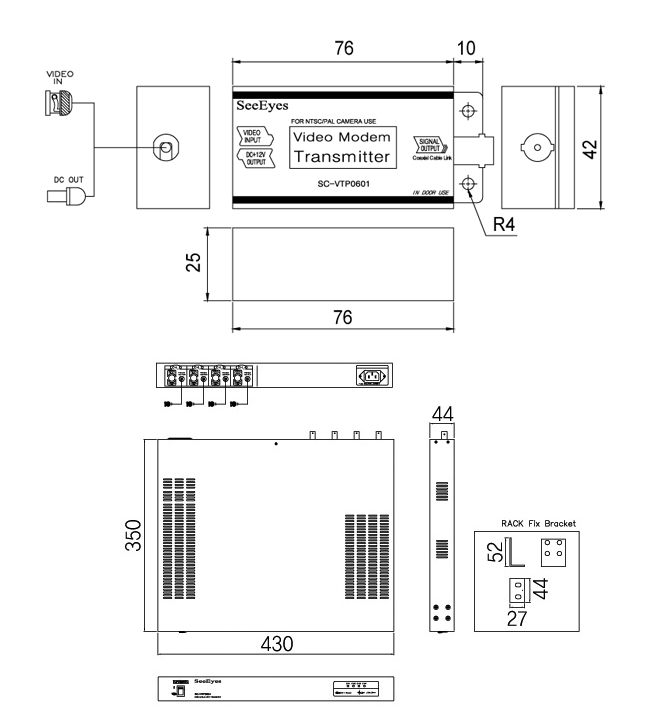

 DIMENSION
