DCO-DU0201D
1/3" Sony Super HAD color CCD
540TV Lines
Panoramic 180 Degree Camera
Limitless Observation Angle 180˚ + 180˚(360˚)
Viewing Angle without Blind Spot
Panoramic 180˚ Camera 1 Video Input/Output
Cutoff Less Panoramic Viewing Angle
Best Observer in Anyplace
Cable concealed thru bracket
3-AXIS Bracket

 SPECIFICATIONS

MODEL
 DCO-DU0201D
SIGNAL SYSTEM NTSC PAL
IMAGE SENSOR DEVICE 1/3" SONY SUPER HAD CCD
EFFECTIVE PIXELS 768(H) x 494(v) 752(H) x 582(v)
HORIZONTAL RESOLUTION MORE THAN 540 TV LINE
MIN. ILLUMINATION 0.1 LUX
SCANNING SYSTEM 2:1 INTERLACE
SYNC SYSTEM INTERNAL SYNC
S/N RATIO 50 dB (AGC OFF)
GAMMA CHARACTERISTIC r=0.45
VIDEO OUT CVBS : 1.0Vp-p 75Ω
ELECTRONIC SHUTTER SPEED 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
POWER SUPPLY DC 12V
POWER CONSUMPTION 250mA
LENS 3.8mm + 3.8 mm FIXED BOARD LENS (180˚)
PERATIONAL TEMP. -10 ℃ ~ +50 ℃ / RH 95% MAX.
STORAGE TEMP. -20 ℃ ~ +60 ℃ / RH 95% MAX.
DIEMENSIONS 98(W) x 197(H) x 133(D)mm
WEIGHT 1.2Kg

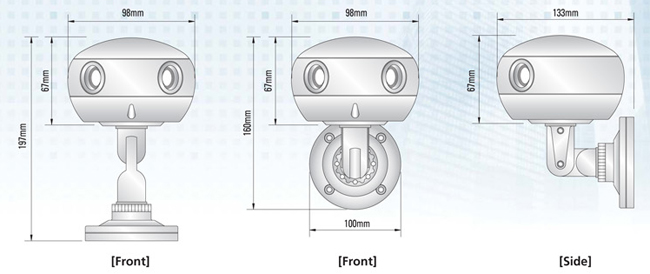

 DIMENSION
