SM-CHW35N
1/3" color CCD sensor interline
IR camera built-in IR LED for 35~40M range in darkview
Unique looks for outdoor / indoor application
Packing camera, lens, bracket as a set
auto-electronic shutter , auto white balance
Water resistant of aluminum die-cast pass IP66 test
Outstanding durability with IP67

 SPECIFICATIONS

MODEL
 SM-CHW35N
SIGNAL SYSTEM NTSC PAL
IMAGE SENSOR DEVICE 1/3" color CCD sensor interline
EFFECTIVE PICTURE ELEMENTS 510(H) x 492(v) 500(H) x 582(V)
SCANNING STANDARD 2:1 INTERLACE
SYNCHRONIZING SYSTEM INTERNAL
HORIZONTAL RESOLUTION MORE THAN 380 TV LINE
ELCTRONIC SHUTTERCONTROL AUTO SHUTTER 1/60~1/100000 AUTO SHUTTER 1/50~1/100000
GAMMA CORRECTION 0.45
MINIMUM ILLUMINATION 1.0 Lux /F 1.8 ※IR ON : 0LUX
VIDEO OUTPUT LEVEL 1Vp-p/75 ohms , composite
VIDEO S/N RATION 48db (ACG OFF)
WHITE BALANCE AUTO (2500˚K~9600˚K)
BACKLIGHT COMPENSATION YES
STORAGE TEMPERATURE -30℃~80℃
OPERATING TEMPERATURE -10℃~50℃
POWER REQUIREMENT DC12V + 10%
POWER CONSUMPTION(TOTAL) 35PCS 370mA
LENS STANDARD 6.0mm/F2.0
PROJECTING RANGE OF DISTANCE FOR IR LED LIGHTER 35 IR LED ABOUT 35~40M
DIEMENSIONS 95(L) x 75(W) x 80(H)mm
WEIGHT 560g

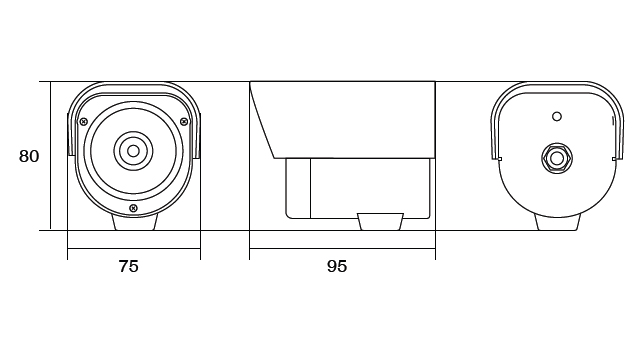

 DIMENSIONS
